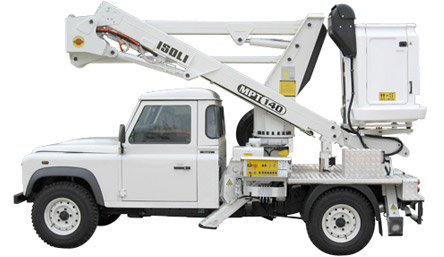

SPECIFICATIONS

1 - Max. working height 14,00 m

2 - Working outreach 6,30 m

3 - Safe working load 200 kg incl. 2 persons

4 - N.B. Height, working outreach and sizes depend on the type of chassis

5 - Installable on chassis of min. 3,5 t GVW

STANDARD DEVICES

1 - lifting frame with single hydraulically operated pantograph and a 2 sections telescopic end (extension by means of double-acting jack)

2 - Locking and balancing valves on all the jacks – solenoid valves group

3 - Subframe with 4 outriggers type ‘A’ and hydraulic distributor composed of: toolbox under the platform deck, anti-slip aluminium cover of the subframe, emergency descent system by means of a hand pump operated from the plateau, basket access ladder, the upperstructure contained within the bulk of the vehicle, mudguards with mudflaps on rear wheels

4 - Aluminium basket – capacity 200 kg – dim. 710x1400x1100 mm

5 - Basket rotation

6 - Automatic basket levelling by means of a double jack

7 - Basket load warning led and control device locking the movements when the nominal capacity is exceeded

8 - Ground positioning of the basket

9 - dual electro-mechanic control panels on the subframe and the basket against simultaneous operation

10 - hourcounter

11 - engine start - stop operated both from the basket and from the vehicle

12 - magnetic rotating light

13 - security interlocking system between outriggers and telescopic boom

14 - anti-collision device between boom/ cabin and front outriggers

15 - cabin door (if necessary)

16 - 220 V electric outlet at basket border with life-saving differential (only for not insul. type)

17 - Installation on chassis – PTO – pump

18 - Non-retracted outriggers lamp in the cabin

19 - Painting of the equipment (one colour)

20 - CE mark
