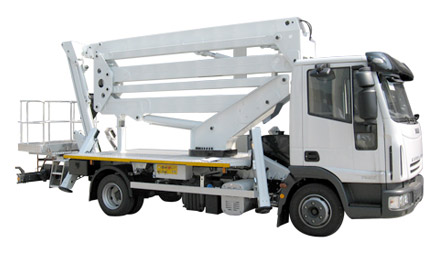

SPECIFICATIONS

1 - Max. working height 27,80 m

2 - Working outreach 13,70 m

3 - Safe working load 200 kg incl. 2 persons

STANDARD DEVICES

1 - 4 hydraulic outriggers type ‘A’ with minimum stabilisation control

2 - 370° turret rotation

3 - Hydraulically operated double pantograph lifting frame

4 - Aluminium basket – capacity 200 kg – dim. 710x1400x1100 mm

5 - 3 sections telescopic boom: 2 sections are proportionally extended by means of double-acting jack and chain driving gear system

6 - Hydraulically operated pantograph jib

7 - Aluminium working basket for 2 persons dim. 800x1800x1100 mm, capacity 200 kg, rotating at 80° RH and 70° LH

8 - Basket load warning led and control device locking the movements when the nominal capacity is exceeded

9 - Automatic basket levelling by means of double jack

10 - Outreach limiter

11 - Dual electro-hydraulic control panels: one under the platform deck for emergency manoeuvres and one in the basket with proportional operating

12 - Locking and balancing valves on all the jacks

13 - Security interlocking system between outriggers and uppersturucture

14 - Emergency descent system by means of a hand pump operated from the plateau

15 - Ground positioning of the basket

16 - Ground panel with emergency functions

17 - Pantograph

18 - vehicle’s cabin anti-collision device and chains break warning led

19 - Toolbox under the plateau

20 - 1 magnetic orange rotating light

21 - Engine start

22 - stop operated both from the basket and from the vehicle

23 - 220 V electric outlet in the basket with life-saving differential

24 - Basket access ladder

25 - Air

26 - water delivery installation in the basket with derivation socket on the plateau

27 - Mudguards with mudflaps on rear wheels

28 - CE mark

29 - Painting of the equipment
