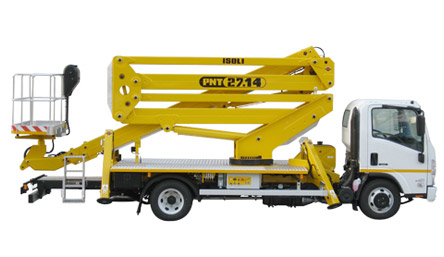

SPECIFICATIONS

1 - Max. working height 26,90 m (double pantograph/ 3 sections EWP)

2 - Working outreach 13,70 m

3 - Safe working load 200 kg incl. 2 persons

Upperstructure composed of:

1 - Turret with slewing bearing

2 - 370o turret rotation

3 - Double pantograph lifting system hydraulically operated plus final telescopic 3 section boom, 2 of which are proportional extended by means of a double-acting jack with chain driving gear system/ Automatic levelling of the basket by means of a two jacks

4 - Locking and balancing valves on all the jacks

5 - Load sensing system on the basket frame

6 - Electrovalve group

7 - Basket hydraulic rotation +/- 90°

8 - Painting of the equipment (one colour) 2. Outriggers No. 4 hydraulic outriggers type ‘A’ and hydraulic distributor. 3. Subframe

STANDARD DEVICES

1 - Basic subframe including welding of point 2 on connecting cross beam

2 - Tool box under the platform deck

3 - Nonslip aluminium platform deck

4 - Emergency descent system by means of a hand pump operated from the platform deck

5 - Access ladder to the platform

6 - Hydraulic and electric system for the subframe

7 -Paint of the subframe (one colour)

Aluminium Basket

1 - Aluminium working basket for two persons 200 kg.- dimensions: 800x1800x1100 mm

Isoli Controls

1 - Dual electro-hydraulic control panels one under the platform deck (only for emergency operations) and one in the basket with proportional operating

2 - Operative hour counter

3 - Engine start

4 - stop operated from the control panel in
the basket and platform deck

5 - 1 magnetic rotating light

6 - Security interlock device between outriggers and telescopic boom

7 - Anticollision device for boom/chassis cabin and pilot signal lamp

8 - Chains breaks pilot lamps

9 - Installation on the chassis

10 - Rear mudguards with splashguards

11 - CE mark (CE type A)
