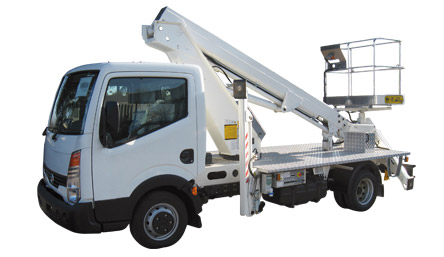

SPECIFICATIONS

1 - Platform: Aluminium 1400 x 710 x h 1100

2 - Platform rotation: Hydraulic 90° RH + 90° LH

3 - Platform levelling: Hydraulic

4 - Working boom: Telescopic with 3 sections

5 - Boom angle: -24°/+80°

6 - Upperstructure rotation: 370°

7 - Controls: Electro-hydraulic

8 - Max. wind force: 12 m/s

9 - Max. manual force: 40 daN

10 - Capacity: 200 kg

11 - N° operators: 2

12 - Max. working height: 14.85 m

13 - Max. working boom extension: 9.30 m

14 - Outriggers: Hydraulic, tipping at front and tilting at rear

15 - Outriggers minimum width: Front 2.87 m - Rear 2.66 m

16 - Minimum installation: TWG 3.5 T



STANDARD DEVICES

1 - Basket

2 - Blocking valves on all hydraulic units

3 - Interlocking safety device between outriggers and boom

4 - Manual pump for manoeuvring in the case of emergency

5 - Containment of the turret structure within the shape of the vehicle

6 - Positioning of the people-carrier basket on the ground

7 - Floor in non-slip aluminium

8 - Tool box under truck board

9 - 1 magnetic orange beacon

10 - Motor start and stop may be controlled from the cage and from the truck

11 - 220 V socket on basket

12 - Hour meter

13 - Basket ladder

14 - Mud guards with splash flaps on rear wheels

15 - Anti-collision device between boom and cab and front outriggers and door

16 - Safety devices in compliance with Machine Directive (CE marking)

17 - Equipment painting
